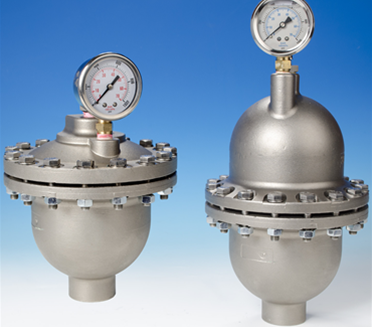

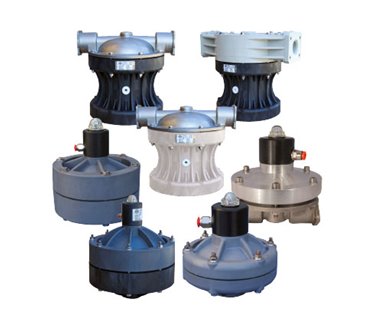

Plast-O-Matic Series PDS Pulsation Dampeners Surge Suppressors

Series PDS Provides Multiple System Safeguards.
PDS is available in three capacities/sizes: 10 cubic inch capacity with a 1" NPT process connection, 50 cubic inch capacity with a 2" NPT process connection, and 180 cubic inch capacity with a 3" NPT process connection. Body materials are choice of Geon PVC, CPVC, Natural Polypropylene, Black HDPE, or Kynar PVDF. Inlet screen and dome top match selected body material, except Black HDPE models. Black HDPE body & connection are Borealis Borsafe HE3490-LS-H; inlet screen, dome top and clamp ring are Geon PVC. All models: Bladder material is EPDM or FKM. Air inlet valve and gauge isolation valve (non-wetted) are brass. Fasteners are stainless steel. For other material or connection requirements, please consult factory.

Size:

1", 2" & 3".

Body:

PVC, cPVC, Natural polypropylene or Kynar PVDF.

Bladder:

Viton or EPDM.
